Solve a wide Range of Business Challenge

Brother - GTX 300NC T-shirt Printing Machine

Combining Speed and Beauty - Professional Manufacturing with One Machine

Direct to Garment Direct to Film High Wash Durability Precise Expressive Capability
41 41 Second - Printing on Light Color T-shirts
63 63 Second - Printing on Dark Color T-shirts
76 76 Second - DTF cut sheet Printing
5 5 Colors - CMYKW
High Performance Direct to Garment Printing

Versatile Material Compatibility

Brother Garment Printer support both DTG and DTF Printing. In addition to natural materials, DTF printing can also be used on synthetic fibers such polyester

T shirt Printing
T-shirts
Direct to Garment
Direct to Garment
Jeans
Direct to Garment
Direct to Film
Uniforms
Direct to Film
Direct to Film
Dry Polo Shirts
Direct to Film
Tote Bags Printing Machine
Tote Bags
Direct to Garment
Jacket Printing
Jackets
Direct to Film
Stoles Printing Machine
Stoles
Direct to Garment
Brother Direct to Garment Printer

Delivers High Productivity and Exceptional Print Quality

The Brother GTX300NC is a high-performance direct-to-garment printer designed to deliver exceptional productivity and outstanding print quality. With high-speed printing and superior image reproduction, it provides reliable performance for professional garment printing applications. The main unit, printheads, and inks are produced in Japan and independently developed using Brother’s extensive technology and experience. With a long history of supporting the apparel industry, Brother has been pioneering the garment printer field since 2005. Leveraging proven technology and a strong track record, the GTX300NC is designed to meet the demands of professional manufacturing environments.
  • Brother GTX300NC – High-Performance Direct-to-Garment Printer for Professional Production
  • High-Speed Printing | Exceptional Image Reproduction | Versatile Material Compatibility

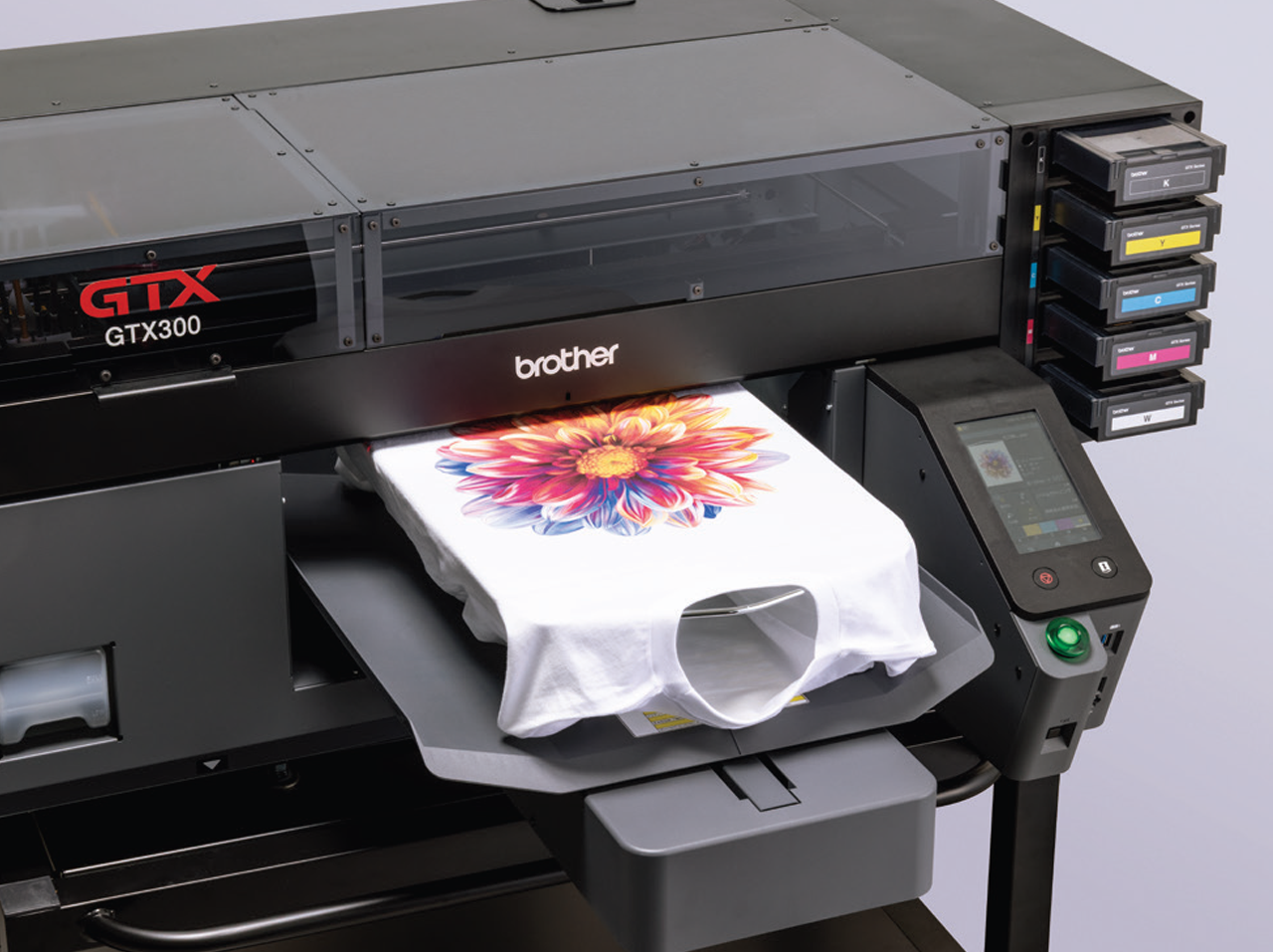

Brother GTX300NC — concept detail
Full Specifications

Technical Specifications

Authorised specifications for the Indian market. Contact REN Technologies for custom configurations and compatibility checks.

Specifications
Model Name GTX300NC
Printing Method Direct-To-Garment Printing Using Piezo Inkjet Technology
Head Piezo Type / 2 Units
Resolution 1200dpi x 1200dpi
Ink Water-Based Pigment Ink
No. of Colors 5 Colors of CMYKW
Standard Platen Regular Platen 355.6mm x 420.1mm (14inch x 16.54inch)
Printable Area Maximum: Wide Platen 406.4mm x 533.4mm (16inch x 21inch)
Operation Panel 7-Inch Touch Panel
Interface 100BASE-TX / 1000BASE-T (LAN Port)
SuperSpeed USB3.0 (For USB Memory)
Hi-Speed USB2.0 (For PC Connection)
External Dimensions 1295mm x 1465mm x 583mm (when platen is stored); 1295mm x 1670mm x 583mm (Max. External Dimensions)
Weight approx. 125kg (Including Platen)
Installation Conditions Single-Phase 100-240V (Power Supply Voltage Fluctuation within ±10%), 50/60Hz
Power Consumptions When Active: 180W or less
Recommended Printing Environment [DTG] Temperature: 18 ~ 30°C; Humidity: 35 ~ 85% (no condensation should occur)
[DTF] Temperature: 19 ~ 30°C; Humidity: 35 ~ 65% (no condensation should occur)
Working Environment [DTG] Temperature: 10 ~ 35°C Humidity: 20 ~ 85% (no condensation should occur)
[DTF] Temperature: 10 ~ 35°C Humidity: 20 ~ 65% (no condensation should occur)
Fixation Conditions [DTG] Conveyor Oven: 160°C for 3.5 mins, or Heat Press: 180°C for 35 sec*
[DTF] Powder Fixing: Conveyor Oven at 160°C for 5 mins
Transfer: Heat Press at 150°C for 20 sec (+ additional press for 20 sec)*
*Time and temperature required for fixing vary depending on the equipment.
Pretreatment Pretreatment is required when using white ink for DTG printing.
Before printing, apply pretreatment using a pretreatment machine, then be sure to dry with a heat press.
Software
OS mac OS 14.0 Sonoma; mac OS 15.0 Sequoia
Windows 11 (64bit)
Mini. Operating Env. CPU: 2 GHz or higher; RAM: 8 GB or more; For creating DTF data, 16 GB or more RAM is recommended.
Software Package Dedicated printer driver    Design tool GTX Graphics Lab
Recommended Applications for Advanced Image Editing Adobe® Photoshop CC
Adobe® Illustrator CC
