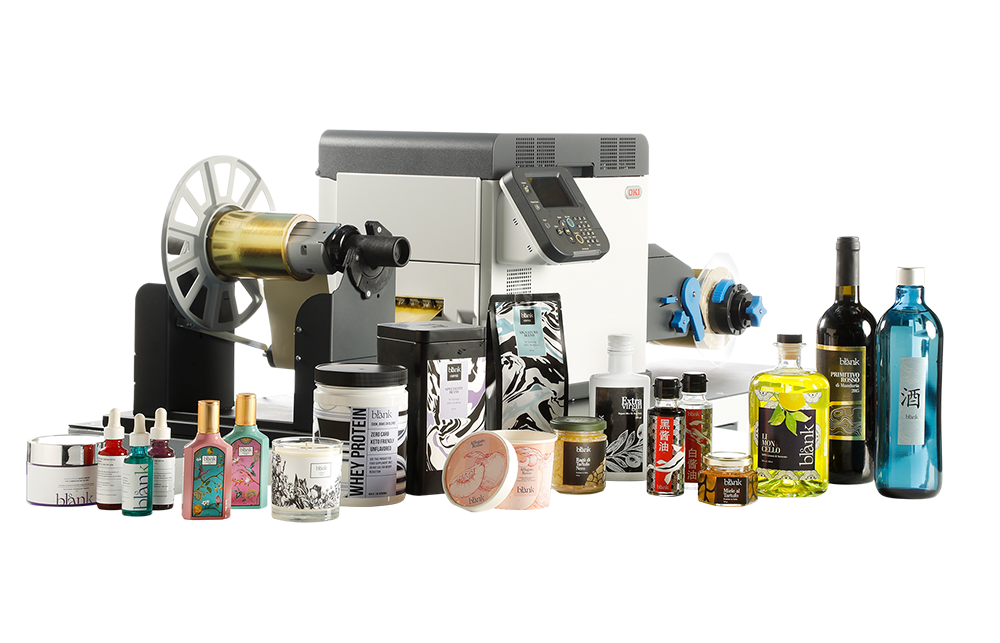

OKI Pro 1040/1050 - Label Printer

The Oki Pro1050 is a high-performance digital label printer and packaging printing machine designed for producing vibrant, professional-quality labels with exceptional flexibility. Powered by digital LED and dry toner technology, the Pro1050 features a unique CMYK + White 5-colour printing system, allowing businesses to create eye-catching labels on transparent, coloured, and specialty media. Its opaque white printing capability produces a strong base beneath CMYK graphics, delivering sharp colours and outstanding image quality across a wide range of label and packaging materials.

Create Labels That Sell. Print Labels That Stand Out.

Print Brilliant White on Any Label

Profitable Short-Run Production

Built for Durable Industrial Labels

Profitable in-house label printing

Versatile media handling

Bringing a new colour dimension to labels

Robust water/chemical resistant printing

Specifications

Technical Specifications

Specification Summary
Product Name	Pro1050	Pro1040
Material Number	46672103	46672003
EAN Code	5031713072003	5031713071990
Printer Mechanical Section	Printing Method	Pro1050: Digital 5 LED full-colour electrophotographic printing method Pro1040: Digital 4 LED full-colour electrophotographic printing method
	Print Speed *1	Max. 152.4mm/s (6ips)
	Minimum Print Margin	Top: 2.12mm, Bottom: 2.12mm, Right: 2.12mm, Left: 2.12mm
	Print Resolution	1200 x 1200 dpi, 600 x 600 dpi
	Media Type *2	Media Format	Roll
		Roll Outer Diameter	203.2mm (8")
		Core Inner Diameter	76.2mm (3")
		Media Width	Roll paper: 25.4mm (1.0") - 130mm (5.1") including liner
		Label Length per job	12.7mm - 1320.8mm
		Print Width	25.4mm - 126.0mm
		Max Print Width	125.76mm (4.95")
		Cut Length	Min. 101.6mm (4")
		Media Type	Plain Paper, Film, Plain Paper Label, Glossy Paper Label, Synthetic Film Label
		Media Thickness	0.076 - 0.250mm
	Roll Wind Direction *3	Face-out, Face-in
Media Detection	Black Mark (printed on back of liner), Gap, None *4
Media Sensor	Thru-Beam Type, Reflective Type
Auto Cutter	Full Cut
Recommended Daily Duty Cycle	Max. 8,000 pages per day *5
Memory (Std./Max)	2GB/2GB
Control Unit	Interface	USB	USB 2.0 (High Speed)
		LAN	1000BASE-T/100BASE-TX/10BASE-T
		Protocol	TCP/IP
	Printer Language	Adobe PostScript 3, PCL 5e emulation, PCL 6 (XL) emulation
	Font	Adobe PostScript 136, PCL emulation 81 scalable fonts, 4 bitmap fonts
	Power Source *6	Single phase 230V AC +/-10%, 50/60 Hz +/-2%
Other Specifications	Power Consumption	Operating	Max. 1200W / 710W
		Idle	Ave. 27W
		Power Save	25W or below
	Operating Environment	Operating: 10 - 30°C, 20 - 70% RH, Storage: -10 - 43°C, 10 - 90% RH, No condensation
	Dimensions (WxDxH) *7	1040×477×441mm	1040×477×441mm
	Weight (includes supplies)	Approx. 62kg (Printer with unwinder)	Approx. 61kg (Printer with unwinder)
	Weight (includes supplies)	Approx. 50kg (Printer with unwinder)
	Supported OS *8	Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 R2
	Safety & Environment	RoHS, Network Access License, cUL Mark, cULus Mark, UL Mark, CSA Mark, EMC-Directive, CE Mark, GS Mark
	Product Life	5 years or 6 million pages *9
In The Box	Power cable, DVD-ROM (Software Drivers & Manuals)
