G7070S PCB Legend Inkjet Printer

Fast, High-Precision PCB Legend Printing

Download Brochure

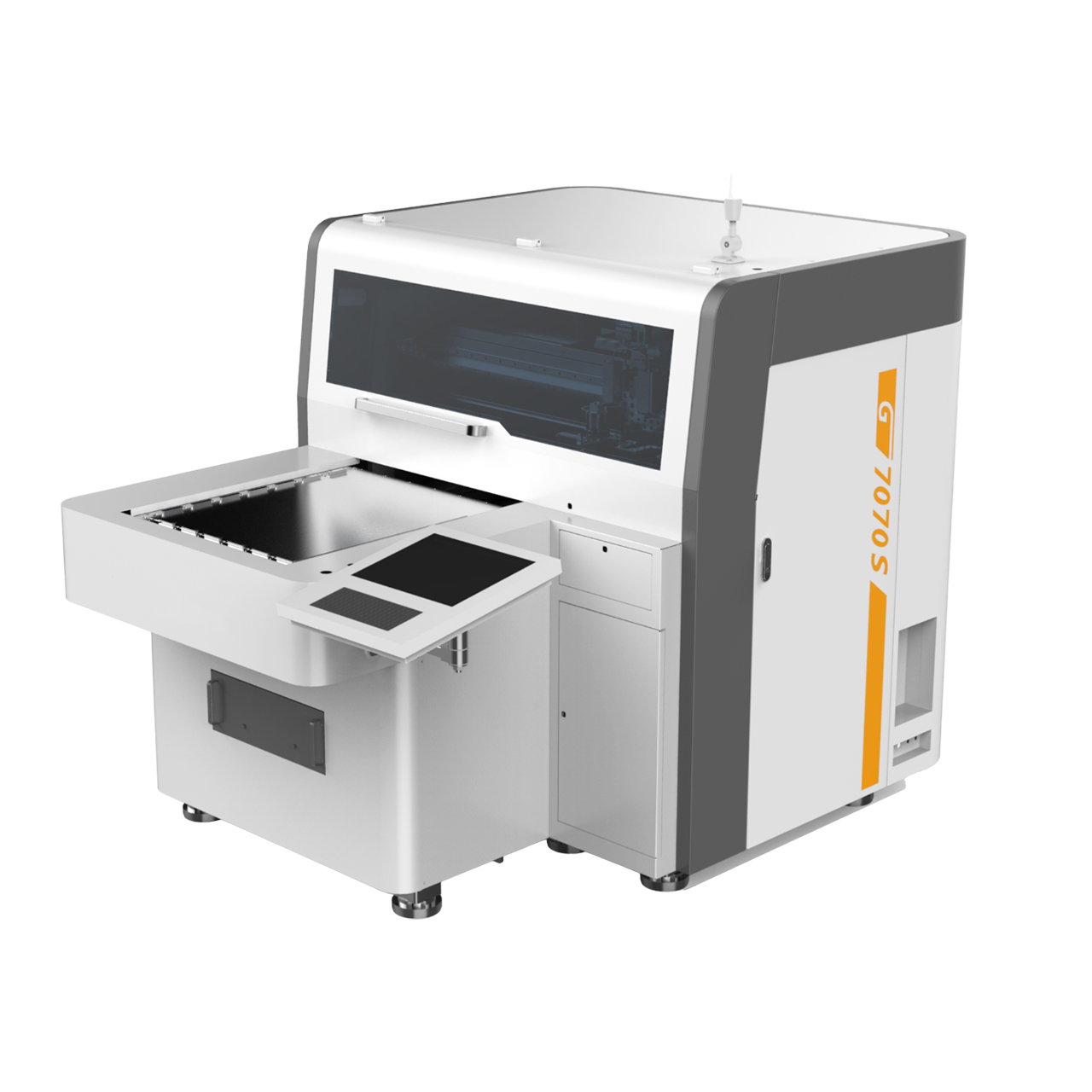

PCB Printer G7070S PCB Legend Inkjet Printer

1440 × 1440 dpi Maximum Resolution

600 mm/s Maximum Printing Speed

3 mil (75um) Minimum Line Width

8.0 mm Maximum Panel Thickness

The G7070S PCB Legend Inkjet Printer is designed for fast and high-precision PCB legend printing with UV legend ink and LED curing. It features CCD automatic alignment, independent research & development software, vacuum table and four sides clamping, and multiple printhead options. With a maximum resolution of 1440 dpi × 1440 dpi, the G7070S delivers precise printing for PCB applications.

Key Features

G7070S PCB Legend Inkjet Printer

Fast, High-Precision PCB Legend Printing

Fast Speed & Simple Operation — Independent research & development software
CCD Automatic Alignment — Helps eliminate alignment errors
UV LED Curing — Low energy consumption and long life
Vacuum Table & Four Sides Clamping — Helps prevent panel warping
Multiple Printheads Technology — Supports up to 4 heads, 288mm width
Linear Motor & Maglev Motion — High speed, low noise and stable motion
UV Legend Ink with LED curing
High-Precision Printing with A/A-A/B printing types

G7070S PCB Legend Inkjet Printer — Key Features

Specifications

Technical Specifications

Specification	G7070S
Printing Width	288mm (Optional)
Max. Printhead No.	2-4pcs KM1024i (Optional)
Min. Line Width	3mil (75um)
Min. Size of Legend	500um x 400um
Max. Resolution	1440dpi x 1440dpi
Drop Size	13pl
Max. Printing Speed	600mm/S
Ink	UV legend ink
Cure Method	LED
Alignment Method	3 or 4 point CCD Camera
Panel Thickness	0.1 - 8.0mm
Max. Printing Size	630mm x 730mm
Printing Type	Fast / Standard / High-Precision: A/A-A/B
Machine Size, Weight	2240mm x 1600mm x 1726mm, 2000 K.G

Applications

Endless Possibilities

G7070S PCB Legend Inkjet Printer is ideal for a wide range of materials and industries.

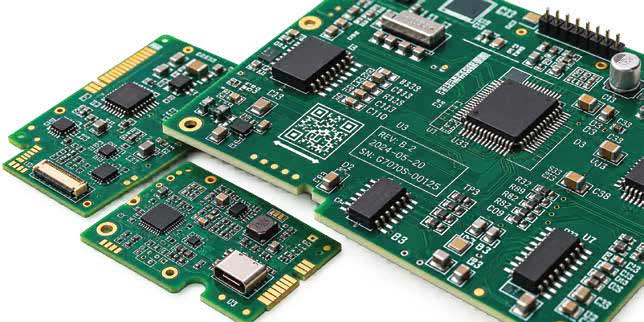

Printed Circuit Board
